Spring Presentation Layer

aonee 2020. 2. 20. 15:32

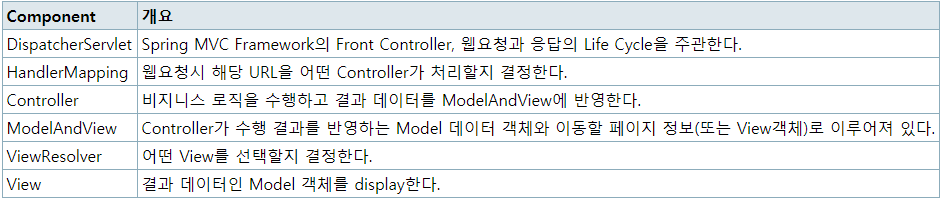

[Spring MVC(Model-View-Controller)의 핵심 Component]

참고 https://www.egovframe.go.kr/wiki/doku.php?id=egovframework:rte:ptl:spring_mvc_architecture

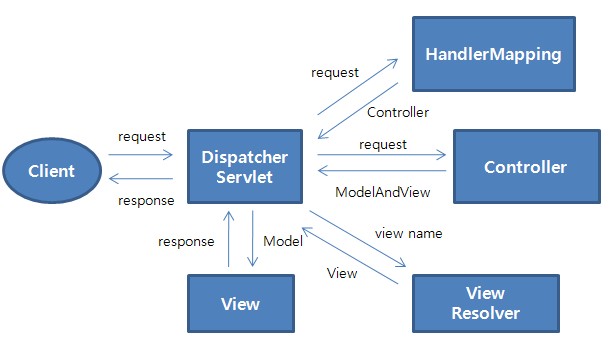

Spring MVC 란?

1. Client Request

2. DispatcherServelet : 최초 진입 지점

3. Handler Mapping :  어떤 컨트롤러에게 요청을 위임하면 좋을지 판단.

                           해당 요청을 처리하기 위한 Controller 찾음.

4. DispatcherServelet:   선태된 Controller호출하여 1. Client Request처리

5. Controller : Business Layer와 통신을 통해 원하는 작업 처리 후  요청에 대한 성공유무에 따라                                 ModelAndView인스턴스 반환.

6. DispatcherServelet : ModelAndView의 View이름이 논리적인 정보이면 ViewResolver 참조해 처리할                                 View생성

7. DispatcherServelet : ViewResolver 통해 View에게 ModelAndView전달.

8. View : 클라이언트에게 UI 제공





Annotation 설명



@RestController ( = @Controller + @ResponseBody)

: Rest를 위한 Controller 기능을 부여하는 Annotation. 반환값을 JSON으로 변환해준다.



@Controller

: 템플릿을 이요해 HTML페이지를 렌더링 및 표시해줌



@ResponseBody

: 반환값을 JSON으로 변환해줌





@GetMapping

: Get메소드 Controller Annotation. 리소스를 조회하는 요청에 사용



EX) @GetMapping("") : "" 에서 url mapping 지정

@RestController

public class testController {

	@GetMapping("")
    public String hello(){
    	return "hello world";
    }
}



@RequestMapping

EX) @RequestMapping (method = RequestMethod.Get, value="") : Get method이면서 url mapping은 "" 의미.

@RestController

public class testController {

	@RequestMapping (method = RequestMethod.Get, value="")
    public String hello(){
    	return "hello world";
    }
}

Controller자체에 URL Mapping도 가능

@RestController
@RequestMapping("test")
public class testController{

}





@PathVariable : URL경로에 변수를 넣는 방식. RESTful API에서 사용함.

@RestController
public class testController{

	@GetMapping("/student/{name}")
    public String getName(@PathVariable(value = "name") final String name){
    	return name;
    }
}

/{name} : {name}을 path에서 name이라는 Parameter로 받으라는 것을 의미.

/{name} -> @PathVariable(value = "name") -> String name으로 변환 -> name 반환







@RequestParam  : URL 파라미터로 값을 넘기는 방식

@RestController
public class StudentController{


	//ex1
	@GetMapping("/student/department")
	public String getMajor(@RequestParam(value="department", defaultValue="") final String department){
    	return department;
    }


    //ex2
    @GetMapping("/student/info")
	public String getMajor(@RequestParam(value="name") final String name)
    						(@RequestParam(value="address") final String address){
    	return name + "의 주소는 " + address + "입니다.";
    }


	//ex3
    @GetMapping("/student/score")
	public String getMajor(@RequestParam(value="score") final int[] score){
    	int sum = 0;
        for(int i : score){
        	sum += i;
        }
        return sum;
    }
}





@PathVariable VS @RequestParam



@PathVariable : parameter

:/student/{name}

localhost:8080/student/name/최예원





@RequestParam : queryString

: @GetMapping("/student/department")

localhost:8080/student/department?department=컴퓨터학과







-path이란? (url or uri) / (가변라우팅)

ex) localhost:8080/student/name/info :  name해당 학생의 정보 조회

     localhost:8080/student/list:  모든 학생 리스트 조회



-queryString이란? (uri)

localhost:8080/student/department?department=컴퓨터학과

에서 ?department=컴퓨터학과 부분.





@RequestBody

: Parameter로 객체를 받는 Annotaion





@PostMapping

: Post메소드 Controller Annotation. 리소스 생성 요청에 사용.





@PutMapping

: Put메소드 Controller Annotation. 리소스 수정 요청에 사용.





@DeleteMapping

: Delete메소드 Controller Annotation. 리소스 삭제 요청에 사용.
